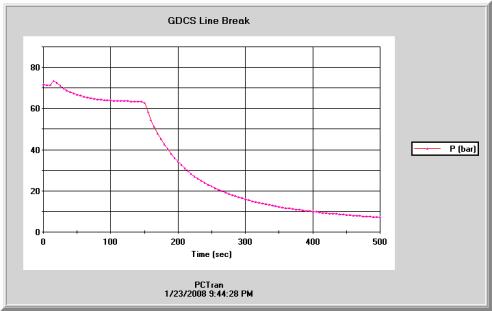

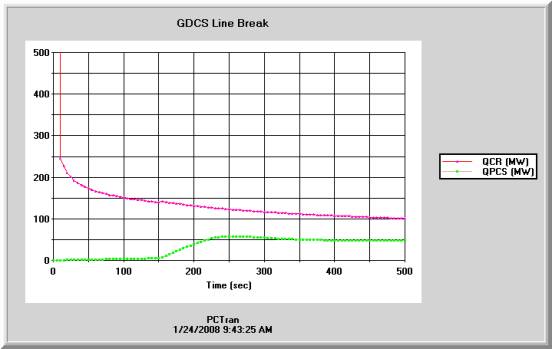

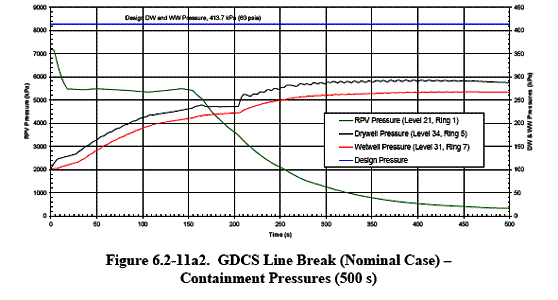

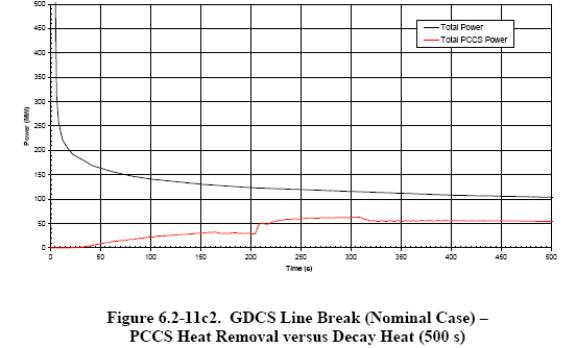

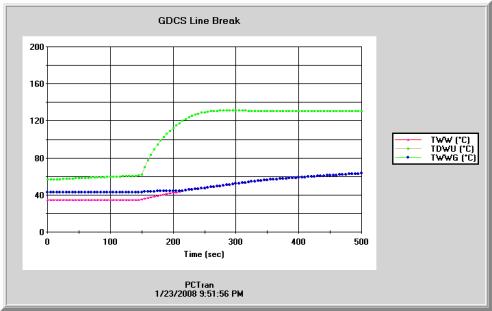

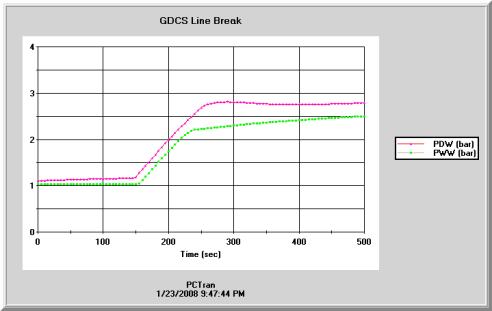

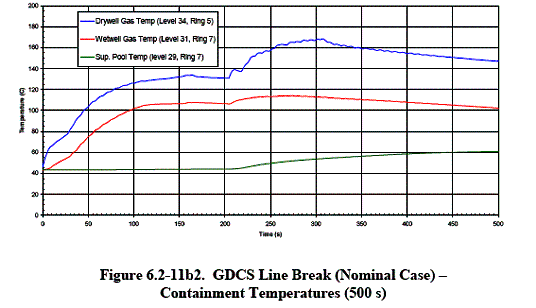

GDCS Line Break with One PDV Failure

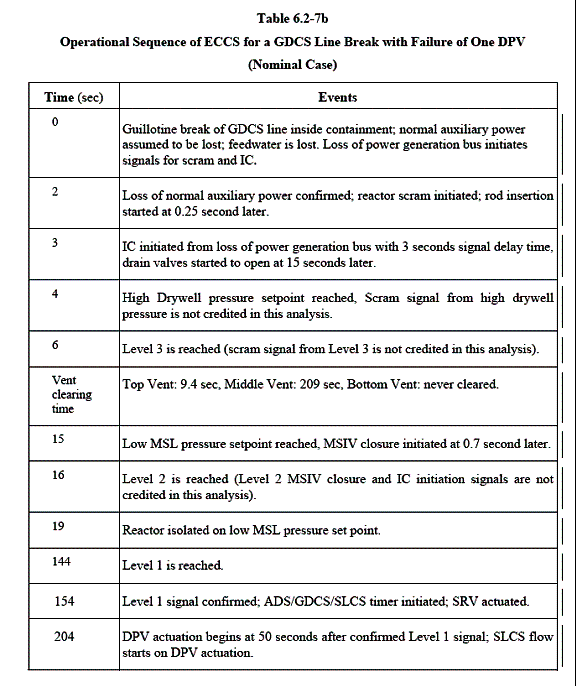

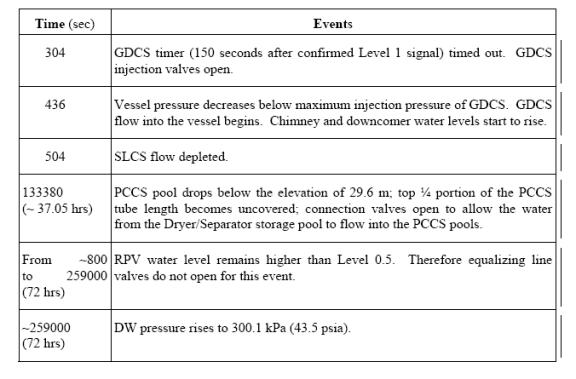

A double-ended break of the GDCS line is of 46.5 cm2 area. The sequence of events is list below. One DPV fails to open is simulated by locking the lumped valve to a 87.5% (7/8) opening position when it is demanded to open.
