CPR-1000                                                   Click for demo download

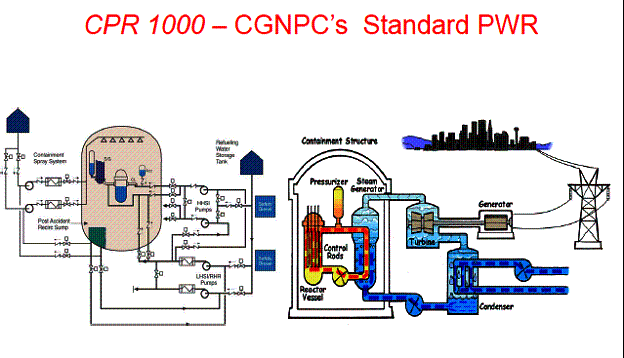

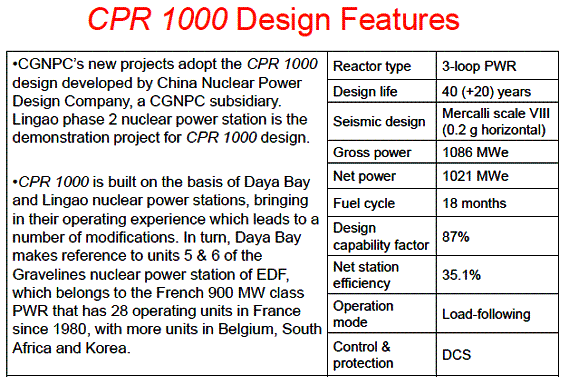

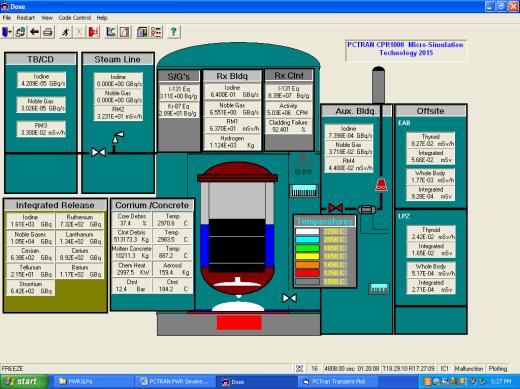

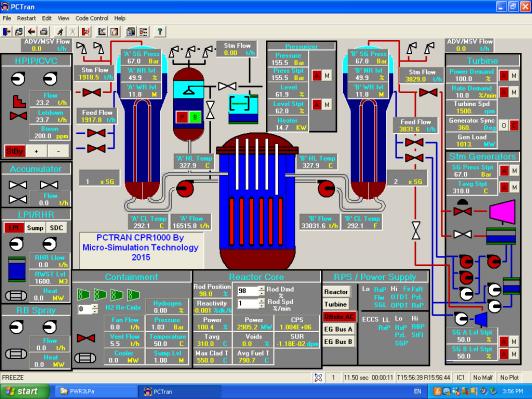

The Chinese CPR-1000 is based on Westinghouse or Areva 900 MW series 3-loop PWR that has the largest share in current world nuclear power production.  Although it belongs to the older generation, new design has digital control, improved fuel economy and durability up to 60-years plant life.  Most importantly, mature experience can guarantee the capital cost below $2000/KW and construction period within five years.  Our PCTRAN was also first developed according to the 3-loop plant and has accumulated the most extensive cases.  Following are three examples in comparison to the Daya Bay Plant in Guangdong, China:

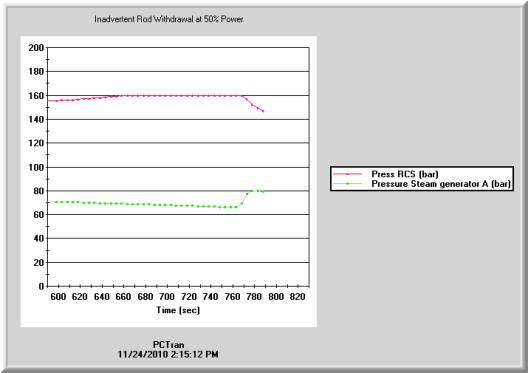

  1. Inadvertent Control Rod Withdrawal at 50% Power

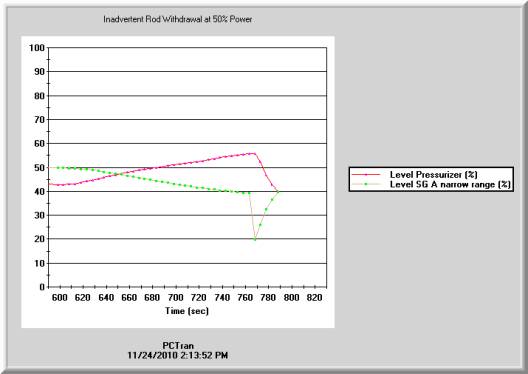

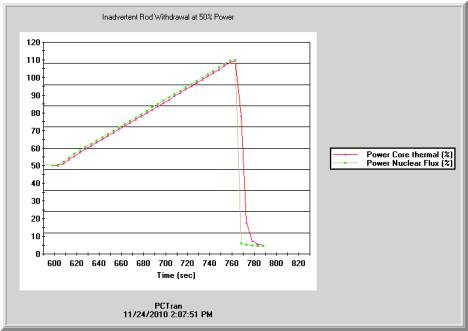

Rod withdrawal has resulted in the reactor power increase to 108% and scrammed by the high-flux trip. The pressure and water level in primary and SG secondary are in good agreement with the Safety Analysis Report.

c2
c4

c6
c8
c10
c12

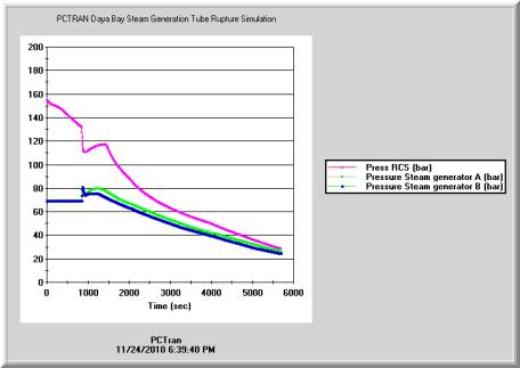

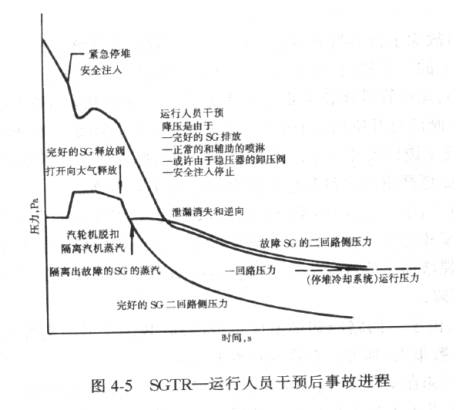

2.         Steam Generator Tube Rupture

A SGTR event is simulated with operator action to depressurize the primary by using normal and auxiliary pressurizer spray and cool-down the intact SG’s by atmospheric dump. All the transient variables are consistent with the FSAR.

c14
c16

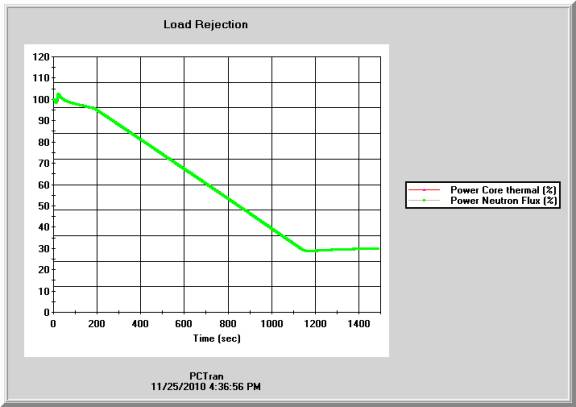

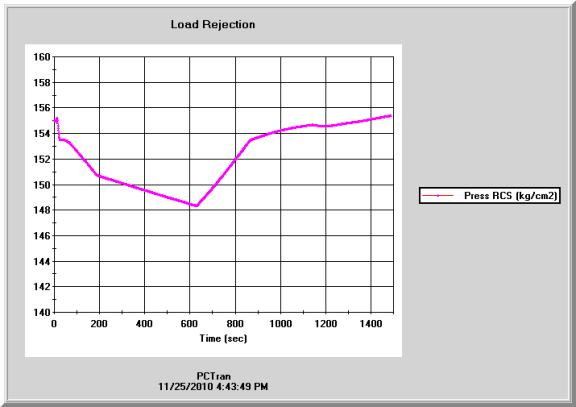

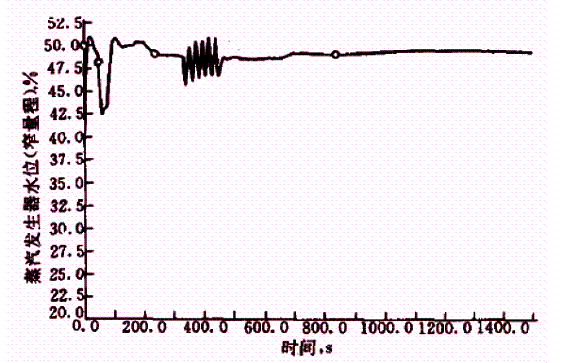

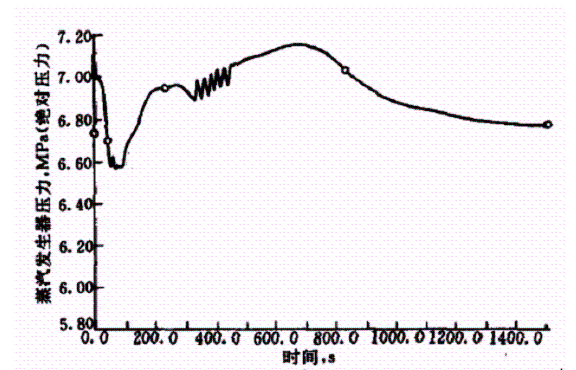

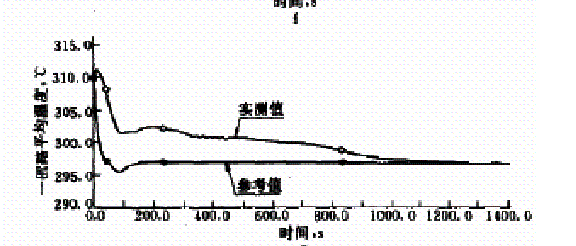

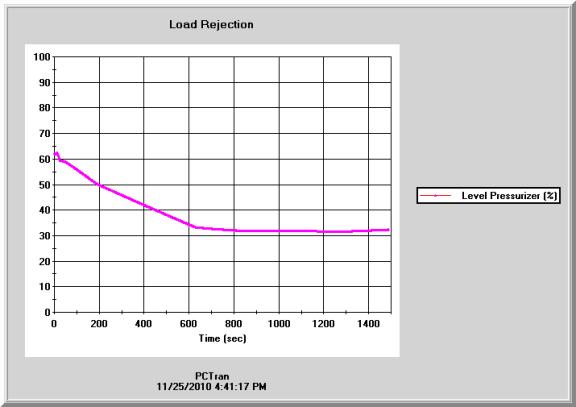

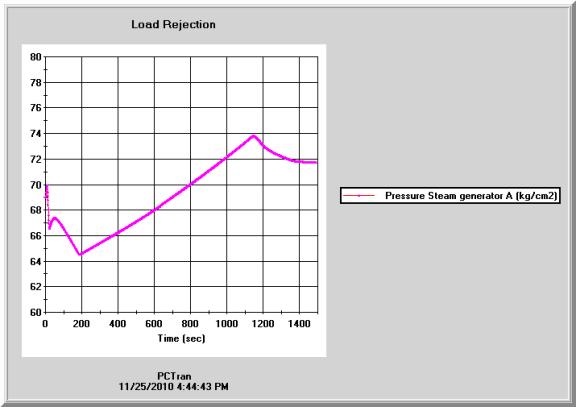

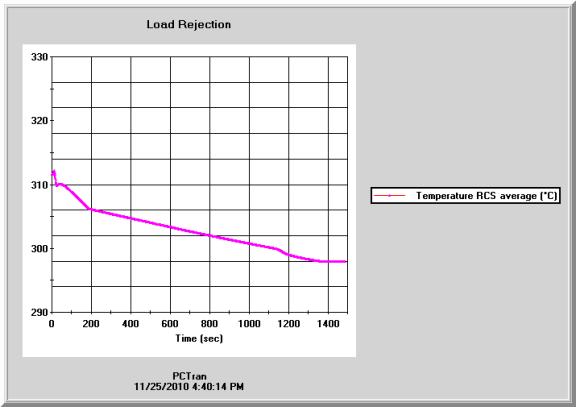

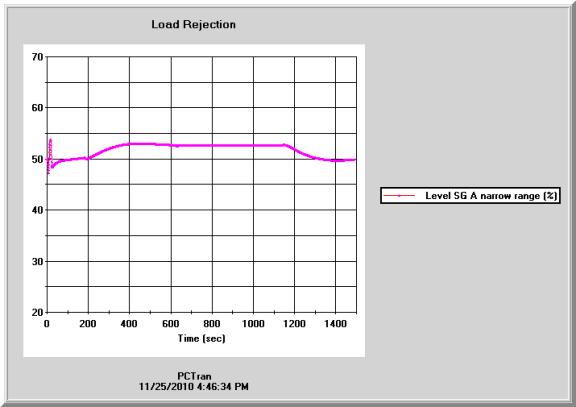

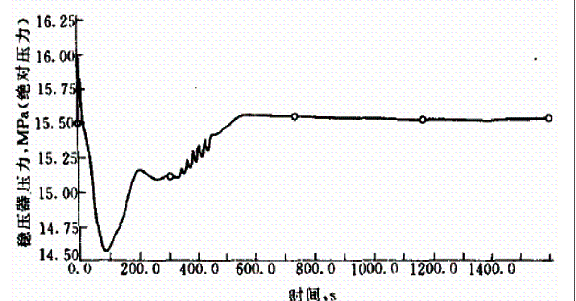

3.         Generator Load Rejection

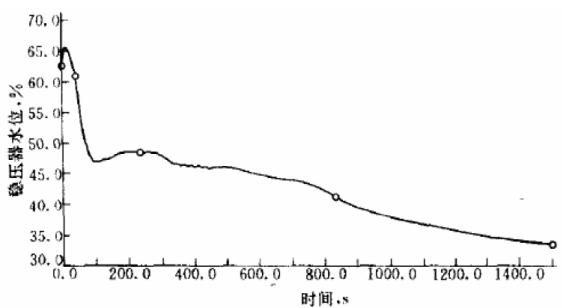

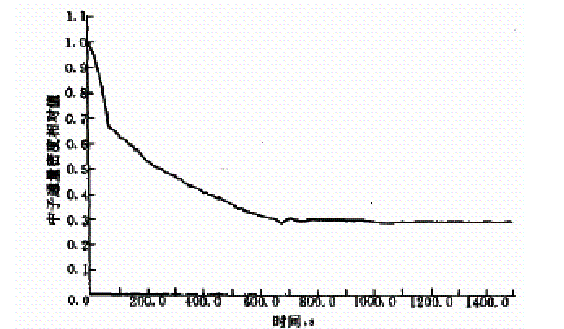

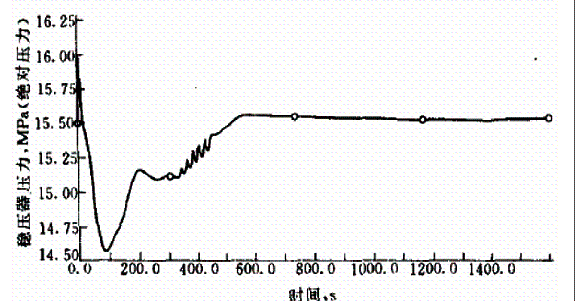

A generator load rejection runs back the reactor automatically to 30% power without a scram. All transient variables are in good agreement with the FSAR.

c18
c20

c22
c24



c26

c28



c30
c32
c34
c36

c38



c40
